Product Description

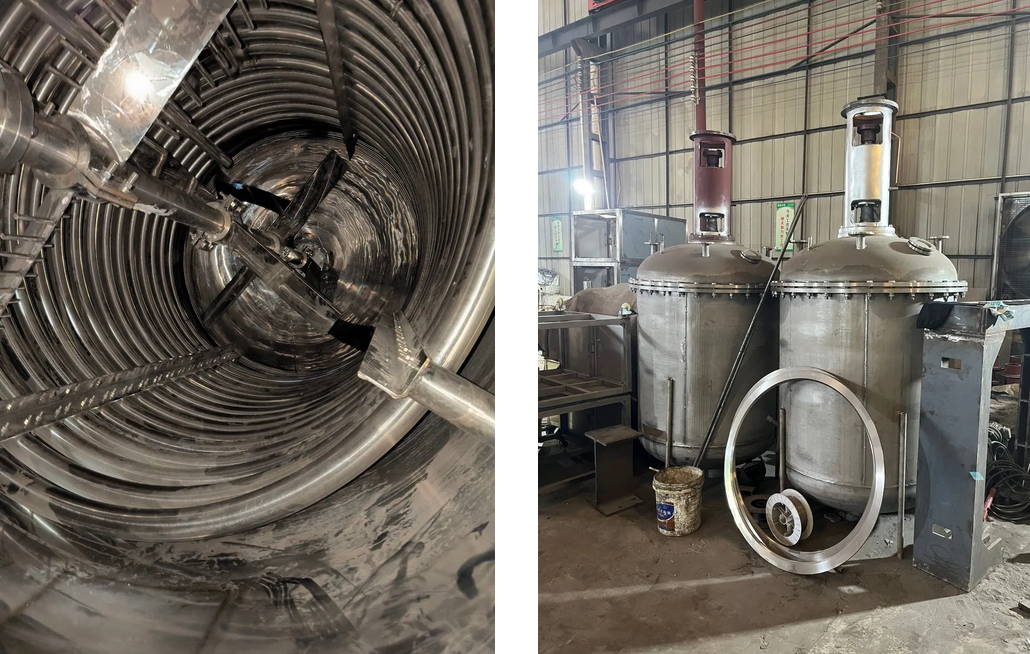

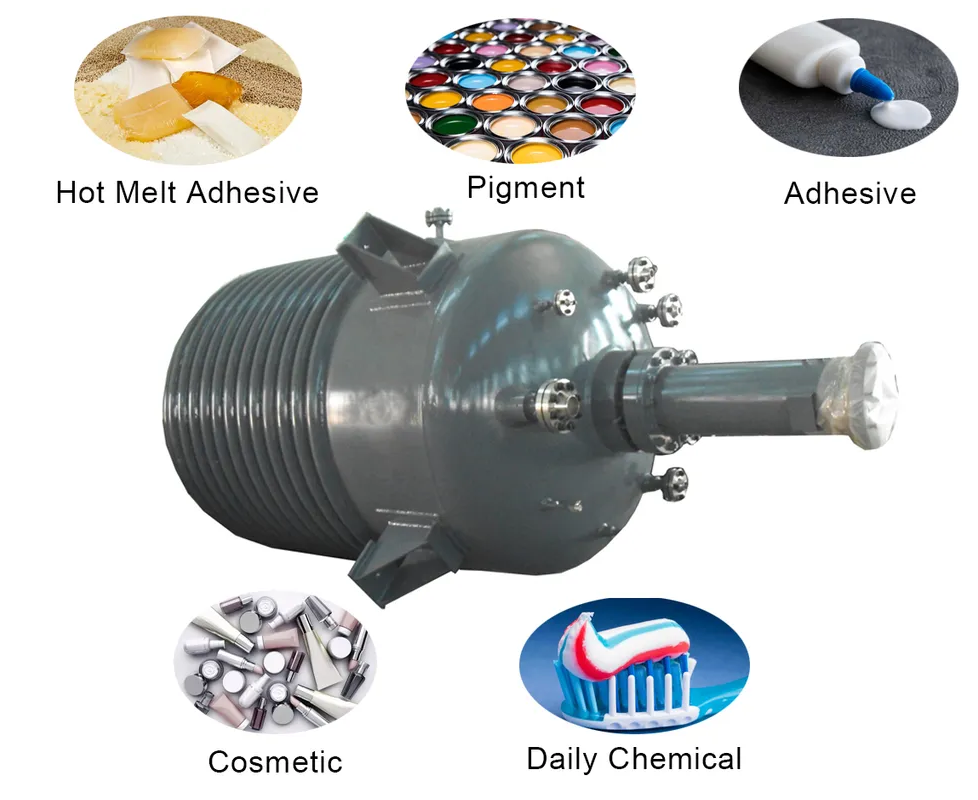

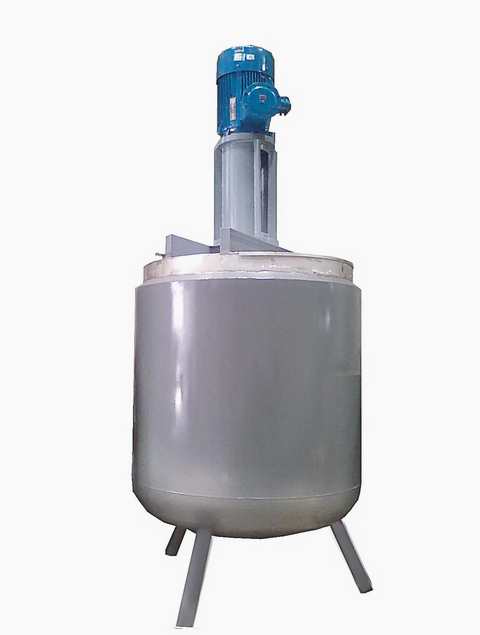

Mixing tank is the main chemical reaction of the typical production equipment, which is widely used in resins, adhesives, paint, cosmetics, pharmaceutical and other chemical production. To break down or combined the materials through mixing, filling and cooling, to promote the reaction of polymerization. The mixing tank consists of body, gears, mixing devices, heating devices, cooling devices, seal composition and some corresponding auxiliary equipment: distillation column, condenser, water separator, collecting cans, filters etc.

model	nominal capaci	actual capci	heating power	jacket capaci	inner pot size	jacket size	hole center	volume
50L	50	78	2*4	96	400	600	828	10
100L	100	127	2*6	127	500	700	928	15
300L	300	327	4*6	218	800	1000	1148	20
500L	500	509	4*9	269	900	1100	1252	25
1000L	1000	1017	4*12	400	1200	1400	1588	40
2000L	2000	2154	4*15	850	1400	1600	1840	80
3000L	3000	3201	5*15	1015	1600	1750	2040	100
4000L	4000	4020	5*15	1226	1600	1750	2070	120
5000L	5000	5170	5*18	1400	1800	2000	2320	140

Design capacity 50-30000L(volume in accordance with the requirements of the design)
Reaction temperature room temperature-300ºC
Reaction pressure -0.1~0.6Mpa
Equipment materail SUS304 stainless steel,SUS321 stainless steel ,SUS316,Q235-B carbon steel
Stirring form --anchor paddle ,block ,ribbon ,turbine tybe,a dispersing disc,modular like,
Heating methods electric heating ,steam heating ,heated in water
Heat transfer medium oil,steam,hot water,electricity and heating
Heat transfer structure jacket,outer half -tube,inner coil type
