Wuxi Hengda Chemical Machinery Co., Ltd.
Technical Parameters:
Body material: SS304, SS316L
Structure: Open-type reactor of flush cover, open welded flange-type reactor and the closed reactor three categories.

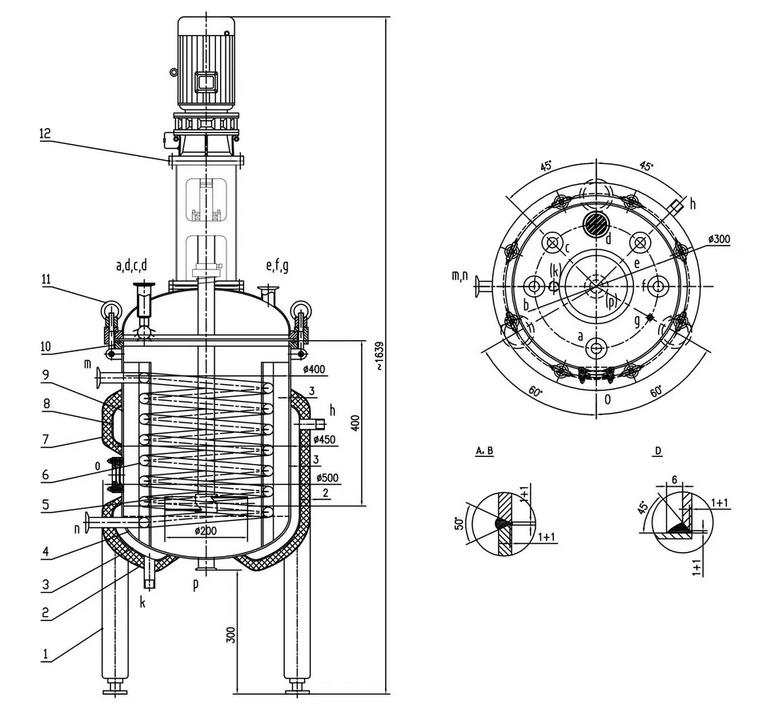

Compose: Body, tank cover, jacket, agitator, transmission, shaft seal device and supporting.
Surface treatment: mirror polishing or wire drawing.
| Model | Volume (L) | Inner pot size (mm) | Outer pot size (mm) | Motor power (KW) | Mixing speed (R/m) |
| YRK-50 | 50 | 400 | 600 | 1.1 | 60-80 |
| YRK-100 | 100 | 500 | 700 | 1.5 | 60-80 |
| YRK-200 | 200 | 600 | 800 | 2.2 | 60-80 |
| YRK-300 | 300 | 700 | 900 | 3 | 60-80 |
| YRK-500 | 500 | 900 | 1100 | 4 | 60-80 |
| YRK-1000 | 1000 | 1200 | 1400 | 5.5 | 60-80 |
| YRK-2000 | 2000 | 1500 | 1700 | 7.5 | 60-80 |
| YRK-3000 | 3000 | 1600 | 1800 | 15 | 60-80 |
| YRK-5000 | 5000 | 1800 | 2000 | 15 | 60-80 |
| YRK-10000 | 10000 | 2000 | 2200 | 18 | 60-80 |
