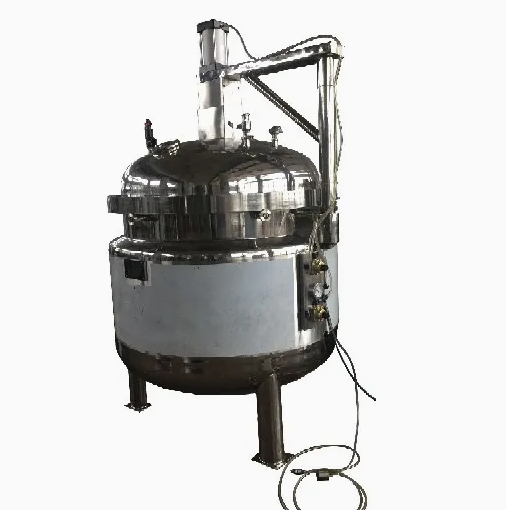

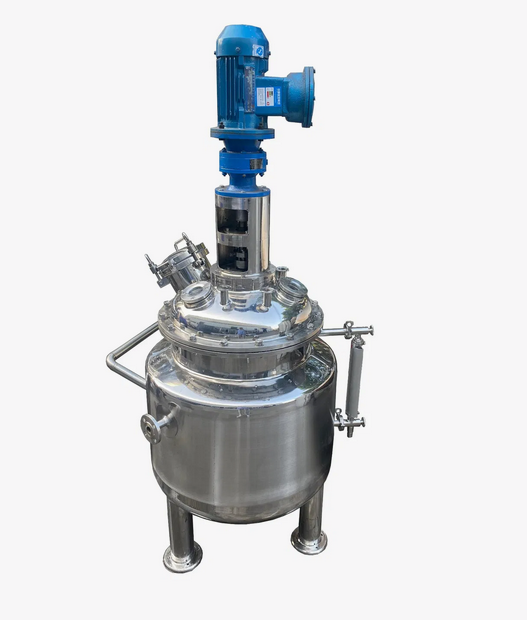

Stainless Steel Jacketed Stirred Reactor Tank

Get Latest Price

Contact Now

Features:

Min. Order: 1

Products

Send Inquiry

Error

* Please fill in your e-mail

* Please fill in the content



Products



Description

Packaging & Delivery

Product Description

This equipment is mainly used in storing material used in food, medicine, chemical industries and it is indispensable storage equipment for them.You can have it made by SUS304, SUS316L stainless steel or Q235B carbon steel. It is reasonably designed, produced by advanced technology and confirm to GMP requirement.

The inner surface of the tank can be mirror polished and the roughness can meet as high as Ra <=0.8 um. The outer surface is polished as follows: the cover and bottom will be mirror polished and the remaining part will be mat polished. All the polish meet international standard.

Features:
Material: SUS304 or S.S.316L
Mixing type: anchor type, frame type or paddle type
Mixing structure: cycloid pin wheel reducer or stepless reducer
Sealing equipment: Mechanical sealing
Heating way: steam heating, electrical heating or heat conduct oil.
Volume: can be made as per customer requirements
Measure: can be made as per customer requirements

Investing in our High Efficiency Titanium Tube Heat Exchanger,Heat Exchanger,Storage Tank,Reactor means investing in a future-proof solution that delivers superior performance and longevity. Don't miss out on the opportunity to elevate your thermal management capabilities with cutting-edge technology.

Technical Parameter:

	FYG100	FYG200	FYG500	FYG1000	FYG1500
Volume L	100	200	500	1000	1500
Diameter mm	500	600	800	1000	1200
Tank Pressure MPa	0.25-0.5
Jacket Pressure MPa	0.30
Motor Power kw	1.1	1.5	2.2	4.0	4.0
Agitation Speed r/min	85
Tank Type	First Grade Pressure Tank
