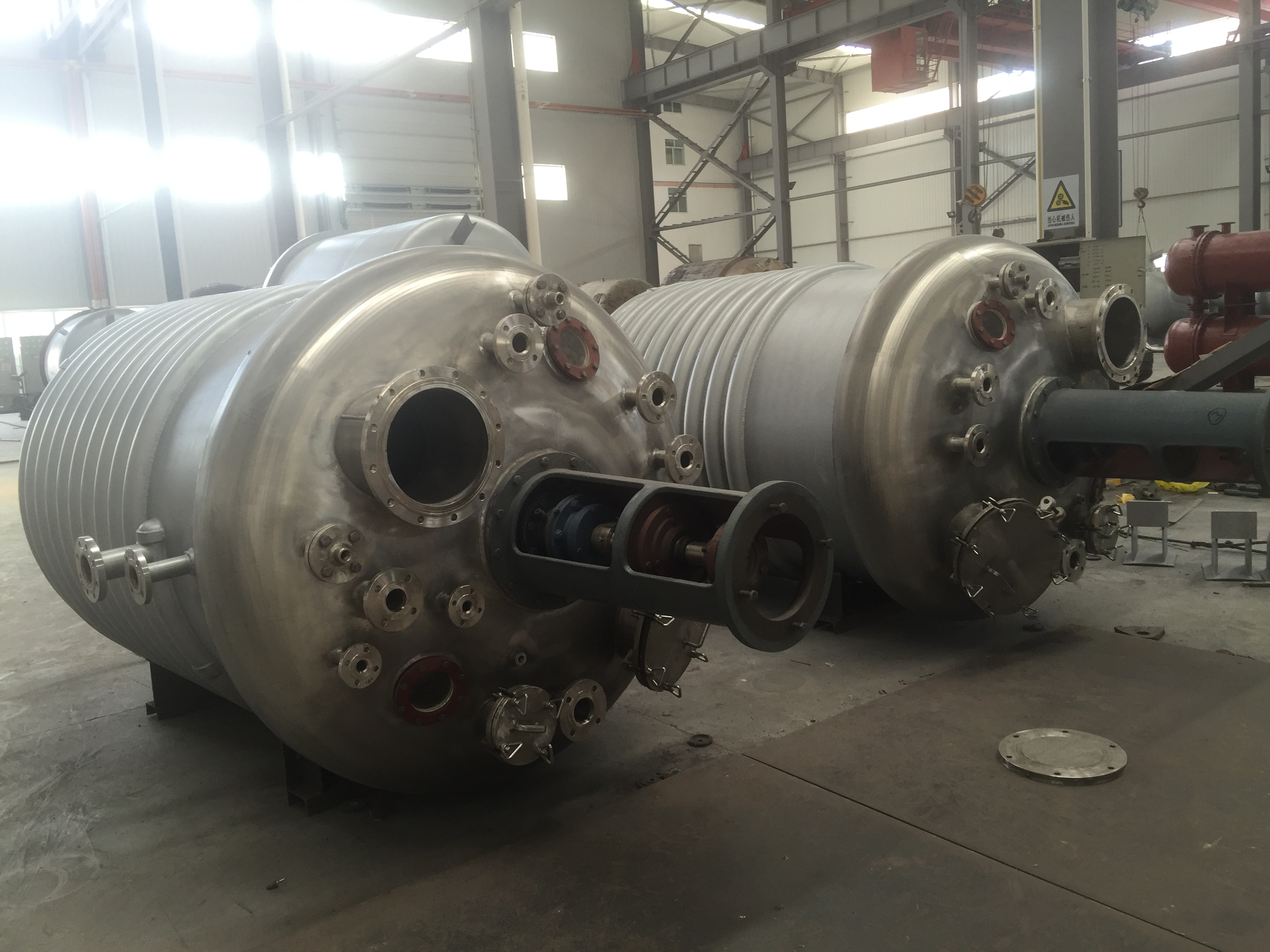

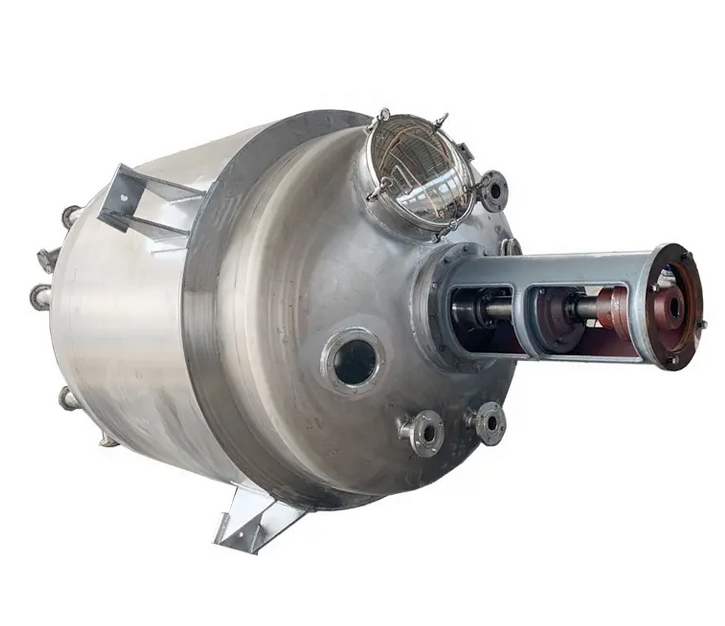

Industrial Continuous Stirred tank Batch Reactor

Industrial Continuous Stirred Tank Batch Reactor is a versatile and efficient solution designed for a wide range of chemical and industrial processes. This reactor is engineered to provide precise control over reaction conditions, ensuring optimal performance in both batch and continuous operation modes. Its robust construction and advanced design make it an essential component in modern production facilities that require reliable and high-quality reaction systems.

The product is ideal for industries such as pharmaceuticals, food processing, petrochemicals, and specialty chemicals where consistent product quality and process efficiency are critical. The reactor's ability to maintain uniform mixing and temperature distribution enhances reaction yield and reduces the risk of process failure. Whether used for small-scale experimentation or large-scale manufacturing, this reactor delivers exceptional results across various applications.



Model	50L	100L	300L	500L	1000L	2000L	3000L	5000L
Mixing Motor Power	0.75KW	1.1KW	2.2KW	2.2KW	4KW	5.5KW	7.5KW	15KW
Heating Motor Power	8KW	12KW	24KW	36KW	48KW	60KW	75KW	90KW
Inner Plate Thickness	5mm	5mm	5mm	5mm	6mm	6mm	8mm	8mm
Jacket Plate Thickness	5mm	5mm	5mm	5mm	6mm	6mm	8mm	8mm
Material	SS304, SS316L, Carbon Steel; It also can lined PTFE. It can be customized to meet your requirement.
Heating Type	electric heating, steam heating, oil circulation heating etc.
Agitator	anchor, paddle, frame etc.
Sealing Method	packing seal or mechanical seal (vacuum)
Model	We still have more models. (6000l, 8000l, 10000l, 15000l, 20000l, 30000l etc.)
