High Viscosity Stainless Steel Flow Chemical Reactor

Get Latest Price

Contact Now

Features:

Min. Order: 1

Products

Send Inquiry

Error

* Please fill in your e-mail

* Please fill in the content



Products



Description

Packaging & Delivery

Product Description

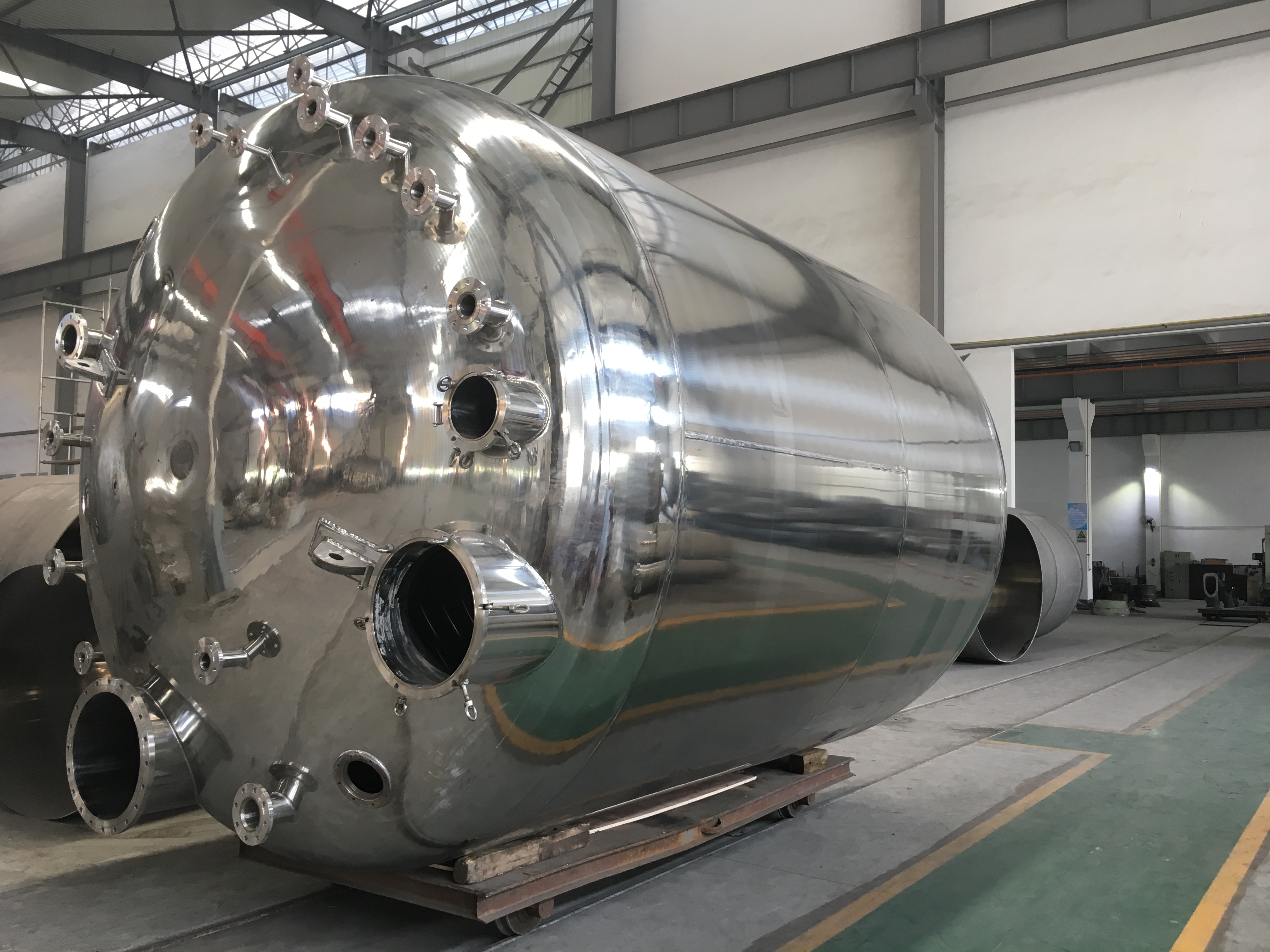

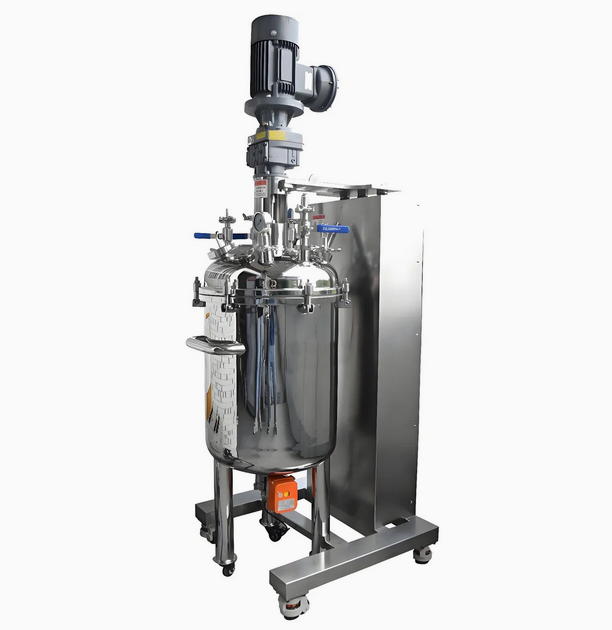

The 5000L High Viscosity Stainless Steel Flow Chemical Reactor is a state-of-the-art industrial apparatus designed for efficient and precise chemical processing in high-viscosity environments. This advanced reactor combines robust construction with cutting-edge engineering to deliver consistent performance across a wide range of applications. Whether used in pharmaceuticals, food processing, or specialty chemical manufacturing, this reactor ensures optimal reaction control, uniform mixing, and safe operation under demanding conditions.

Chemical Reactor
Reactor is used in oil, chemical, rubber, pesticide, dye, medicine and food. It is used to the process of vulcanization, oxidation, alkylation, polymerization and condensation.

Technical Parameters:
Body material: SS304, SS316L
Structure: Open-type reactor of flush cover, open welded flange-type reactor and the closed reactor three categories.
Compose: Body, tank cover, jacket, agitator, transmission, shaft seal device and supporting.
Surface treatment: mirror polishing or wire drawing.

Model	Volume (L)	Inner pot size (mm)	Outer pot size (mm)	Motor power (KW)	Mixing speed (R/m)
YRK-50	50	400	600	1.1	60-80
YRK-100	100	500	700	1.5	60-80
YRK-200	200	600	800	2.2	60-80
YRK-300	300	700	900	3	60-80
YRK-500	500	900	1100	4	60-80
YRK-1000	1000	1200	1400	5.5	60-80
YRK-2000	2000	1500	1700	7.5	60-80
YRK-3000	3000	1600	1800	15	60-80
YRK-5000	5000	1800	2000	15	60-80
YRK-10000	10000	2000	2200	18	60-80

Investing in our Steel Hydrogen Storage Tank,Stainless Steel Pressure Tanks,Double Tube Sheet Heat Exchanger,Stainless Steel Reactor means investing in a future-proof solution that delivers superior performance and longevity. Don't miss out on the opportunity to elevate your thermal management capabilities with cutting-edge technology.
