Acrylic Emulsion Energy-Saving Reactor

Get Latest Price

Contact Now

Features:

Min. Order: 1

Products

Send Inquiry

Error

* Please fill in your e-mail

* Please fill in the content



Products



Description

Packaging & Delivery

Product Description

Epoxy Resin PVC Resin Acrylic Emulsion Energy-Saving Reactor

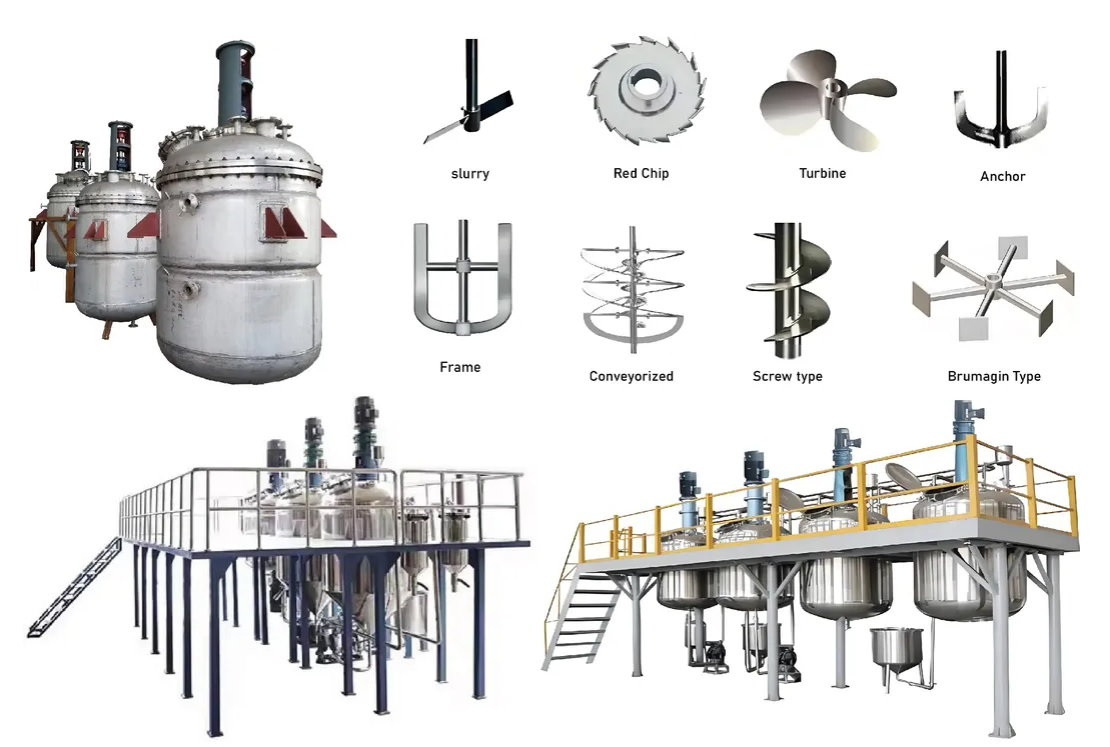

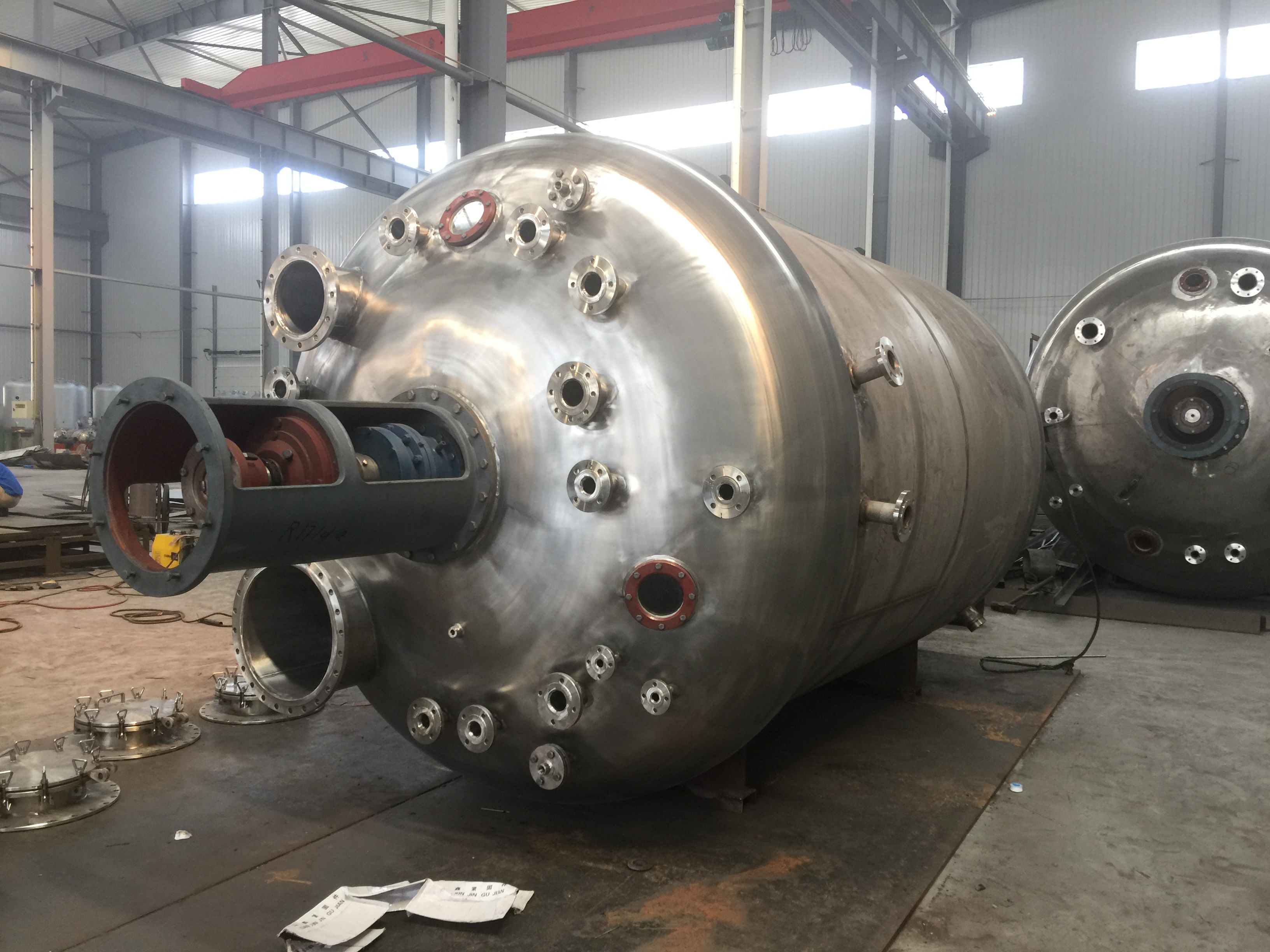

The reactor is a comprehensive reaction vessel. The design of the reactor structure, function and accessories is based on the reaction conditions. From the initial feeding-reaction-discharging, the pre-set reaction steps can be completed with a high degree of automation, and important parameters such as temperature, pressure, mechanical control (stirring, blasting, etc.), reactant/product concentration, etc. during the reaction process are strictly regulated. Its structure is generally composed of a kettle body, a transmission device, a stirring device, a heating device, a cooling device, and a sealing device. Corresponding auxiliary equipment: fractionation column, condenser, water separator, collection tank, filter, etc.

The company's main technologies and products:
1. Design, manufacture and installation of chemical equipment.
2. Complete equipment for unsaturated resins, emulsions, water-based PU, seam beautifiers, adhesives, paints, coatings and hot melt adhesives
3. Complete equipment for glass glue, MS glue, silicone, structural glue, electronic potting glue, thermal conductive glue and polyurethane glue
4. Multifunctional reactor, powerful disperser, planetary mixer, double planetary power mixer, horizontal kneader, vertical kneader, vacuum disperser, concentric twin-shaft mixer
5. Horizontal twin-screw mixer, twin-screw cone mixer, vertical ribbon mixer, plow blade mixer, twin-shaft zero-gravity mixer, powder mixing complete equipment.

Nominal volume(L)	Effective volume(L)	Electric heating power(KW)	Jacket capacity(L)	Inner pot size( φmm)	Outer pot size(φmm)	Reducer model	Motor power(KW)	Stirring speed(n/min)
Nominal volume(L)	Effective volume(L)	Electric heating power(KW)	Jacket capacity(L)	Inner pot size( φmm)	Outer pot size(φmm)	Reducer model	Motor power(KW)	Stirring speed(n/min)
50	62	3*2	95	400	600	B1	1.5	60-80
100	130	6*2	120	500	700	B1	1.5	60-80
200	247	6*2	200	600	800	B2	2.2	60-80
300	355	6*2	250	700	900	B2	3	60-80
500	589	9*3	290	900	1100	B3	4	60-80
1000	1215	9*4	560	1200	1400	B3	5.5	60-80
2000	2244	12*4	750	1300	1500	B4	7.5	60-80
3000	3201	15*5	1015	1500	1700	B4	11	60-80
4000	4020	15*5	1226	1600	1800	B5	15	60-80
5000	5170	18*5	1400	1800	2000	B5	15	60-80

Investing in our Steel Hydrogen Storage Tank,Stainless Steel Pressure Tanks,Double Tube Sheet Heat Exchanger,Stainless Steel Reactor means investing in a future-proof solution that delivers superior performance and longevity. Don't miss out on the opportunity to elevate your thermal management capabilities with cutting-edge technology.
