Product Description

The precisely designed spiral-wound tube bundles enable the medium to form intense turbulence in both the tube side and the shell side. Compared with traditional straight-row tube heat exchangers, the unit area heat transfer capacity is significantly enhanced, and the heat transfer and condensation recovery rates are higher.

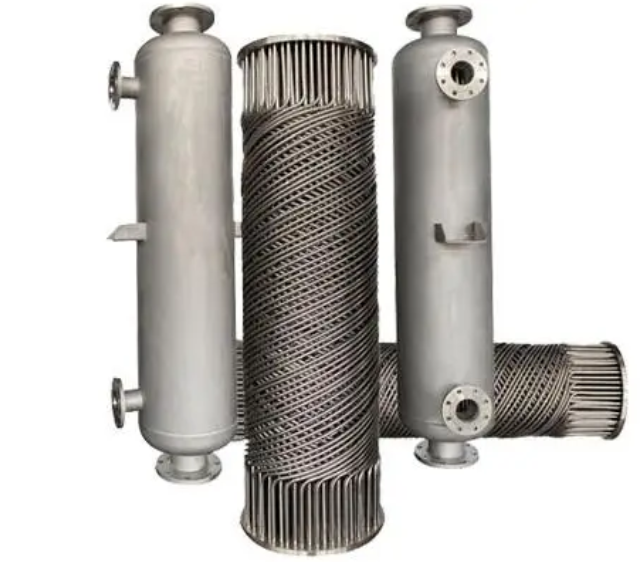

The unique spiral-wound tube bundle is elastic, effectively alleviating the stress of tube and tube plate separation caused by temperature difference and vibration, and significantly prolonging the service life.
The maximum heat exchange area per unit volume is achieved. Under the same working conditions, its volume is only one fifth of that of traditional heat exchangers. It can be directly connected to the pipeline, occupies less space, and has low installation and maintenance costs.

It is not easy to scale: the liquid phase design flow rate can reach 5.5m/s, the scale deposition rate is low, and the scaling tendency is low.
Multi-material options: 304&316L stainless steel, 2205 duplex steel, titanium, Hastelloy (high temperature and pressure resistance, corrosion resistance, long service life）
Low operating costs, energy saving: due to high heat exchange efficiency, heating conditions can save heat energy. The cooling condition can improve the recovery rate or reduce the refrigerant consumption.

Product tepy	Spiral Wounded Heat Exchanger
Fluid flow rate	The liquid phase design flow rate can reach 5.5m/s,( 68348181,customizable)
Materials	304&316L stainless steel, titanium, 2205 duplex steel
Size	According to design requirements
Maximum working pressure	4Mpa (customizable)
Installation	Horizontal/Vertical
Working temperature range	- 20℃~203℃
Surface treatment	sandblasting, polishing (customizable)
Pipe specifications	Ф8、Ф12

Investing in our High Efficiency Titanium Tube Heat Exchanger,Heat Exchanger,Storage Tank,Reactor means investing in a future-proof solution that delivers superior performance and longevity. Don't miss out on the opportunity to elevate your thermal management capabilities with cutting-edge technology.
