Product Description

Efficient Spiral Coiled Tube Heat Exchanger is a cutting-edge solution designed for optimal thermal performance in a wide range of industrial applications. This High Efficiency Heat Exchanger Spiral Coiled offers superior heat transfer capabilities, making it an ideal choice for processes that require consistent and reliable temperature control. Engineered with precision and built to last, this Efficient Coiled Tube Heat Exchanger combines advanced technology with durable materials to deliver long-term efficiency and minimal maintenance requirements.

Product tepy	Spiral Wounded Heat Exchanger
Fluid flow rate	The liquid phase design flow rate can reach 5.5m/s,( 68350128,customizable)
Materials	304&316L stainless steel, titanium, 2205 duplex steel
Size	According to design requirements
Maximum working pressure	4Mpa (customizable)
Installation	Horizontal/Vertical
Working temperature range	- 20℃~203℃
Surface treatment	sandblasting, polishing (customizable)
Pipe specifications	Ф8、Ф12

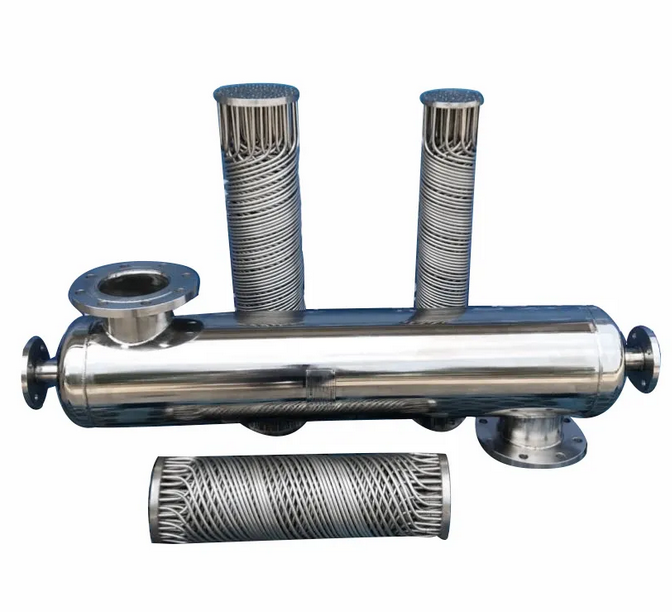

The precisely designed spiral-wound tube bundles enable the medium to form intense turbulence in both the tube side and the shell side. Compared with traditional straight-row tube heat exchangers, the unit area heat transfer capacity is significantly enhanced, and the heat transfer and condensation recovery rates are higher.

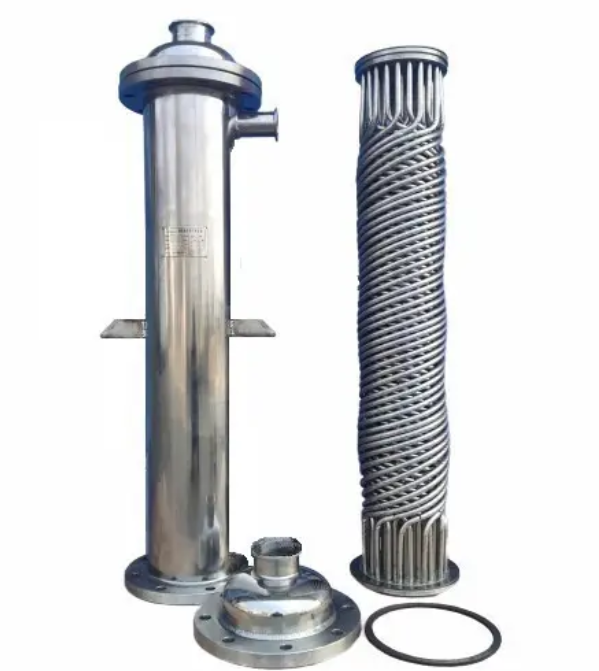

The unique spiral-wound tube bundle is elastic, effectively alleviating the stress of tube and tube plate separation caused by temperature difference and vibration, and significantly prolonging the service life.

The maximum heat exchange area per unit volume is achieved. Under the same working conditions, its volume is only one fifth of that of traditional heat exchangers. It can be directly connected to the pipeline, occupies less space, and has low installation and maintenance costs.

Investing in our Steel Hydrogen Storage Tank,Stainless Steel Pressure Tanks,Double Tube Sheet Heat Exchanger,Stainless Steel Reactor means investing in a future-proof solution that delivers superior performance and longevity. Don't miss out on the opportunity to elevate your thermal management capabilities with cutting-edge technology.
