Small Shell and Tube Heat Exchanger

Heat exchangers are essential components in a wide range of industrial and commercial applications, facilitating the transfer of thermal energy between two or more fluids. Among the various types available, tube heat exchangers stand out for their efficiency, durability, and versatility. These devices are specifically designed to maximize heat transfer while maintaining fluid separation, making them ideal for both cooling and heating processes. Whether used in chemical processing, power generation, or HVAC systems, tube Heat Exchanger technology plays a crucial role in optimizing performance and energy consumption. For those requiring compact solutions, small scale tube heat exchanger units offer the same level of effectiveness but in a more space-efficient design. This product description explores the key features, applications, and benefits of tube heat exchangers, including tube condenser heat exchanger models, to provide a comprehensive understanding of their value in modern engineering.

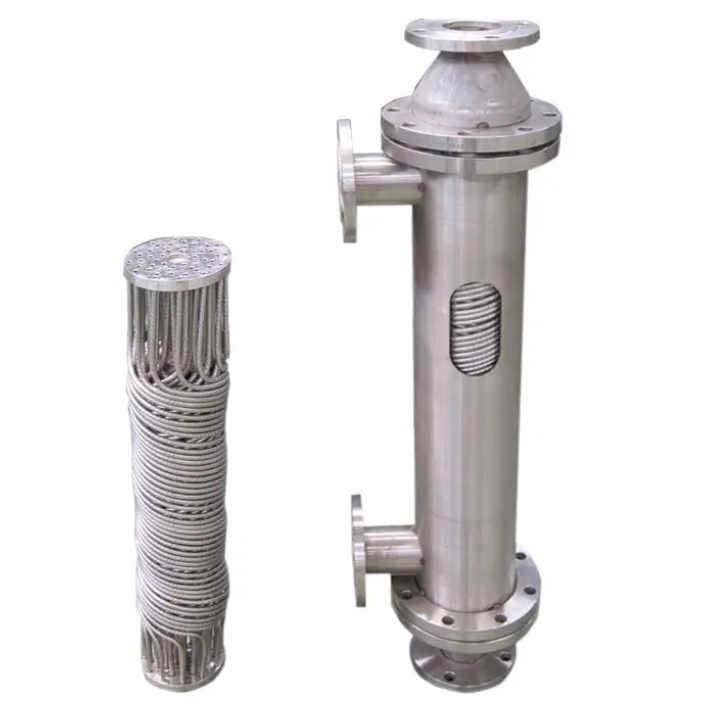

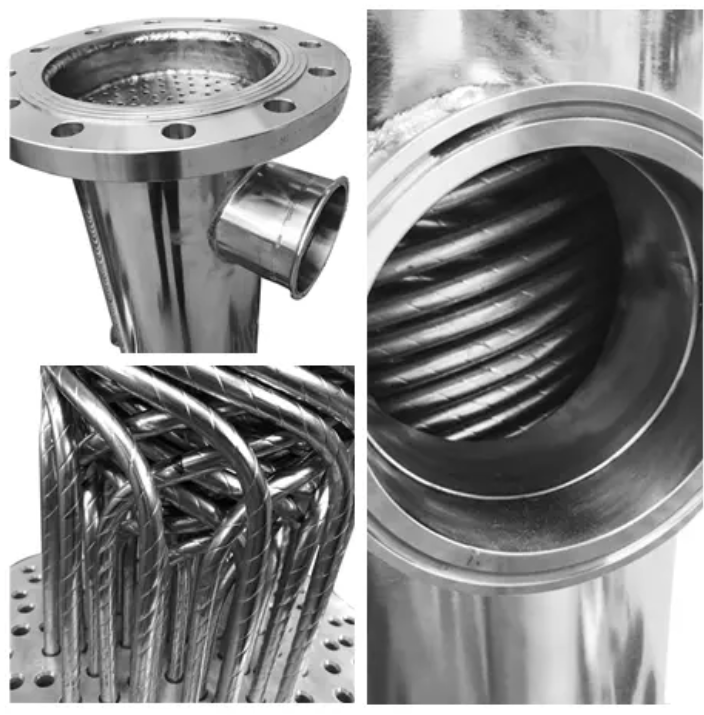

The precisely designed spiral-wound tube bundles enable the medium to form intense turbulence in both the tube side and the shell side. Compared with traditional straight-row tube heat exchangers, the unit area heat transfer capacity is significantly enhanced, and the heat transfer and condensation recovery rates are higher.
The unique spiral-wound tube bundle is elastic, effectively alleviating the stress of tube and tube plate separation caused by temperature difference and vibration, and significantly prolonging the service life.

The maximum heat exchange area per unit volume is achieved. Under the same working conditions, its volume is only one fifth of that of traditional heat exchangers. It can be directly connected to the pipeline, occupies less space, and has low installation and maintenance costs.

Low operating costs, energy saving: due to high heat exchange efficiency, heating conditions can save heat energy. The cooling condition can improve the recovery rate or reduce the refrigerant consumption.



Product tepy	Spiral Wounded Heat Exchanger
Fluid flow rate	The liquid phase design flow rate can reach 5.5m/s,( 68350010,customizable)
Materials	304&316L stainless steel, titanium, 2205 duplex steel
Size	According to design requirements
Maximum working pressure	4Mpa (customizable)
Installation	Horizontal/Vertical
Working temperature range	- 20℃~203℃
Surface treatment	sandblasting, polishing (customizable)
Pipe specifications	Ф8、Ф12
