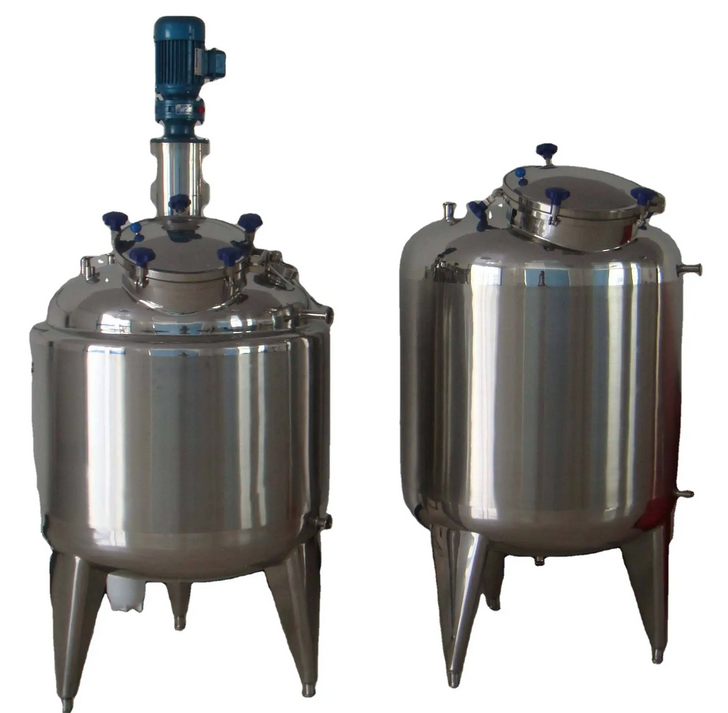

Pressure Pressure Blending tank Vessel
Multi Function Mixing Tank is suitable for manufacturing various liquid products (such as detergent, shampoo, shower gel etc). It integrates mixing, homogenizing, heating, cooling, pump discharge finished products and defoaming (optional) functions. It is the ideal equipment for liquid products in domestic and international factories.

1. It can treatment lots of material . And can heating or cooling the material that inside the tank .

2.The top head or bottom tank can be up and down by cylinder .

3. High corrosion resistance PH:1-13, the material can be stainless steel 304,316L and titanium. And also can be PTFE coating inside

	200L	500L	1000L	2000L	10000L	20000L
Diameter(mm)	500	700	900	1200	1800	2300
Heigh(mm)	2300	2650	2900	3800	5250	6550
Inner pressure(Mpa)	0.2MPA
Layer pressure(Mpa)	0.3MPA
Stirring paddle No.	1-3 pcs
Stirring speed(r/min)	40-2990rpm
Motor power(kw)	0.75	1.1	1.5	3	7.5	12
We can customize the equipment according to customer requirements.
